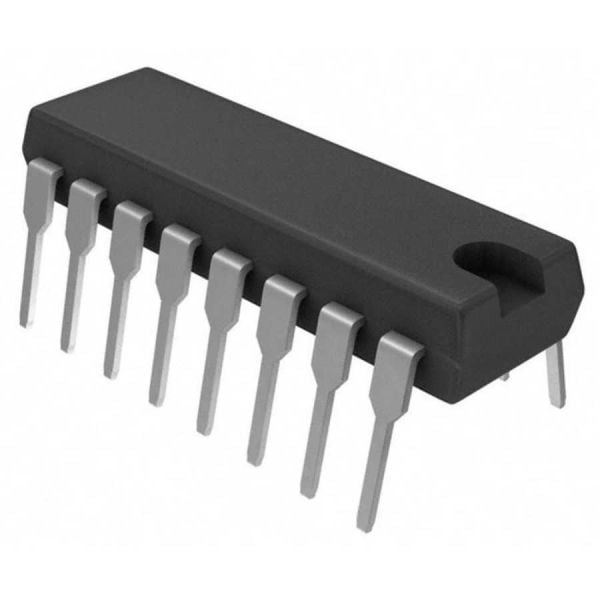

ULN 2004 DIP 16
15,10 TL
*15,10 TL den başlayan taksitlerle!
Darlington transistor, ULN2004AN,
The ULN2004AN device is high-voltage, high-current Darlington transistor array. It consists of seven NPN Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads.
Features
- Output clamp diodes
- Inputs compatible with various types of logic
Applications
- Relay drivers
- Lamp drivers
- Display drivers
- Stepper and DC brushed motor drivers
Technical specifications
| Version | NPN | |
| Enclosure | DIP-16 | |
| max.voltage between collector and emitter Vceo | 50 V | |
| Assembly | THT | |
| Rated current | 500 mA | |
| Saturation voltage | 1.1 V |
