Mike Konnektör 16mm Erkek+Dişi
36,54 TL
*36,54 TL den başlayan taksitlerle!
Product Description

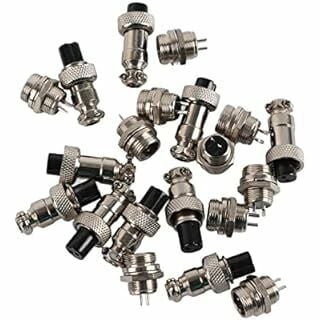

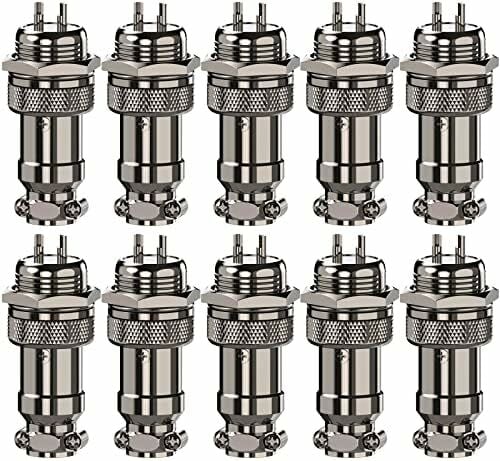

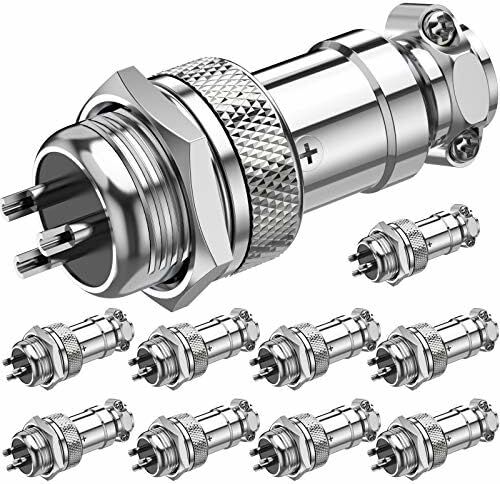

Cylindrical ConnectorsGX12 2/3/4/5/6 Pin Male & Female 12mm L8893 Circular Aviation Plug Jack Socket Wire Panel Connector
Diameter 12mm
Ambient temperature: -50 ~ +70 C
Relative humidity: up to 98% at +40 C
Atmospheric pressure: up to 4,4 kpa
Vibration: vibration frequency 10 ~ 100Hz, acceleration 100m/s2
Impact: Frequency of 60 to 80 / min, acceleration of 250m/s2
Centrifugal: acceleration 250m/s2
Rated voltage: 2 core /3 core/ 4 core- 400V, 5 pin /6 pin /7 pin /8pin- 250V Rated current: 5A
Contact resistance: (each contact pair)Less than 0.005
Insulation resistance: In normal conditions, not less than 1000M; after constant warm tests, not less than 20M.
Test voltage: (50Hz, RMS) In normal conditions, 2 core /3 core/ 4 core-1500V, 5pin/ 7pin -1200V,
After constant warm test, 2 pin/ 3 pin /4 pin -1200V, 5pin /7pin- 1000V
