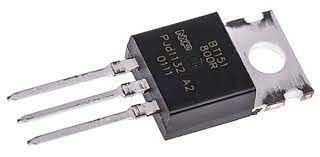

BT151 Tristör 7.5A 500V TO-220
22,93 TL
*22,93 TL den başlayan taksitlerle!
Technical Details
- General
-
- Mounting form
- TO-220
- Electrical values
-
- URRM
- 500 V
- Nominal current
- 12 A
- Manufacturer specifications
-
- Manufacturer
- NXP
- Factory number
- BT151-500R
- Package weight
- 0.001 kg
- RoHS
- conform
BT 151-500R NXP
Passivated thyristors in a SOT78 plastic package
Features
• high thermal cycling performance
• high bidirectional blocking voltage
Applications
• motor contro
• static switching
• ignition circuits
• protection circuits
Quick reference data
• VDRM = 500 V (BT151-500L/R)
• ITSM = 120 A (t = 10 ms)
• VRRM = 500 V (BT151-500L/R)
• IT(RMS) = 12 A
• VDRM = 650 V (BT151-650L/R)
• IT(AV) = 7.5 A
• VRRM = 650 V (BT151-650L/R)
• IGT = 5 mA (BT151 series L)
• VDRM = 800 V (BT151-800R)
• IGT = 15 mA (BT151 series R)
• VRRM = 800 V (BT151-800R)
