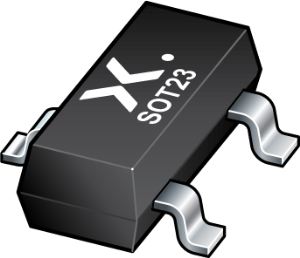

BC856 Transistör PNP -100 mA -65 V SMD SOT-23
0,84 TL
*0,84 TL den başlayan taksitlerle!
Technical specifications
| Version | PNP | |
| Enclosure | SOT-23 | |
| max. operating temperature | 150 °C | |
| max.voltage between collector and base Vcbo | -80 V | |
| max.voltage between collector and emitter Vceo | -65 V | |
| min. operating temperature | -65 °C | |
| Assembly | SMD | |
| Saturation voltage | -650 mV | |
| Transit frequency fTmin | 100 MHz | |
| Power dissipation | 0.25 W | |
| Collector current | -100 mA | |
| Max DC amplification | 475 mA | |
| Min DC gain | 220 mA |
