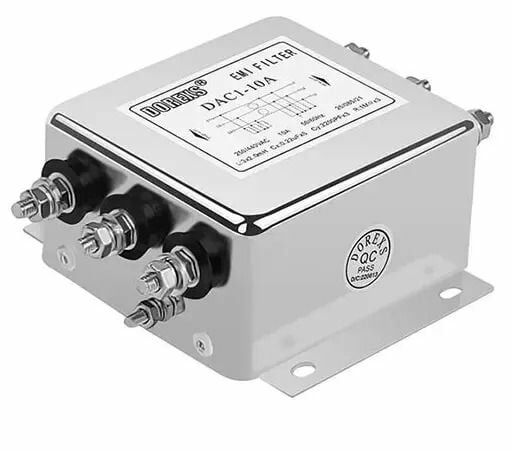

3 Faz 30A Emi Filitre 250-440V AC

1.896,76 TL
*1.896,76 TL den başlayan taksitlerle!
Kategori
Fiyat
45,00 USD + KDV
Stok Kodu
DAC330A

Product introductionThis series of products produced by our company are characterized by standard filter circuit design, small size, low price, and good performance in solving high frequency interference of 100Khz-30Mhz. They have been widely used in all kinds of three-phase system switching power supply, ups and other electronic power equipment, distribution cabinet, and other three-phase electronic power equipment and other complex electromagnetic interference environment equipment, so as to ensure the normal and safe operation of these equipment, effectively reduce the failure rate of equipment, reduce the interference of high-frequency signal to peripheral equipment and power grid, and provide your EMC service Radiation test escort.



 Short Description:

■ Three Phase AC 380/440VAC EMI Filters/Noise Filters
■ Rated Current:30A—35A
■ Double filter circuit design
■ In the 100Khz-30Mhz frequency band, it has very good common mode and differential mode interference suppression capabilities

■ We are a manufacturer, focusing on EMI filters for 14 years


■ We have UL ROHS CE certificate

 Product information





 List of general products

Part No.

Rated Current

Leakage Current

Electrical Schematics

 Safety           certification

DAC3-30A

30A

<2.0mA







CEROHS

DAC3-35A

35A

<2.0mA

This parameter is only a specification product, we support parameter customization




 DAA1 Series EMI power noise filters (3)
 DAA1 Series EMI power noise filters (2)









 xdrtg (2)

Rated voltage

380/440VAC

Line Frequency

50/60Hz

Test Voltage

1500VDC (line/line)



2750VAC (line/ground)

Insulation Resistance

>50MΩ@500VDC

Climatic category

25/085/21
