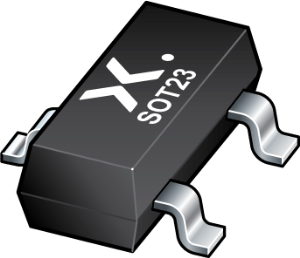

MMBT2222 Transistör NPN 600 mA 40 V SMD SOT-23
0,84 TL
*0,84 TL den başlayan taksitlerle!
Technical specifications
| Version | NPN | |
| Enclosure | SOT-23 | |
| max. operating temperature | 150 °C | |
| max.voltage between collector and base Vcbo | 75 V | |
| max.voltage between collector and emitter Vceo | 40 V | |
| min. operating temperature | -55 °C | |
| Assembly | SMD | |
| Saturation voltage | 1 V | |
| Transit frequency fTmin | 300 MHz | |
| Power dissipation | 0.31 W | |
| Collector current | 600 mA | |
| Max DC amplification | 300 mA | |
| Min DC gain | 100 mA |
